Conceptual: What is an MMU?¶

Terminology¶

MMU - "Multi-Material Unit", a term first coined by Prusa Research, used generically for any extension to a 3D printer that allows a single extruder to print with more than one filament. Other names for the same idea exist - AFC (Automatic Filament Changer), AMS (Automatic Material System) - Happy Hare uses MMU throughout regardless of what a given vendor calls their design.

Gate - often called a "Lane" or "Slot", a gate is where one filament sits when it isn't loaded into the printer. Happy Hare numbers gates from 0.

Gear stepper - sometimes called the "filament drive stepper" or "MMU extruder stepper", this is whichever stepper(s) that actually push or pull filament through the MMU. Once filament reaches the extruder, the gear stepper is typically synced to the extruder stepper to double the driving force and overcome the extra friction the MMU's filament path adds.

Selector - the mechanism that brings a chosen gate's filament in line with the gear stepper (or the gear stepper in line with a chosen gate, depending on the design). See Selector mechanisms below - this is the one piece of hardware that genuinely varies between MMU families. It is important to note that Type-B designs have multiple Gear steppers and so "select" by simply switching with gear stepper is driven.

Filament (catchment) buffer - a mechanism that catches and manages the loose filament ejected by the MMU when it unloads, so it can be reloaded again (often at higher speed) without tangling. Takes many physical forms: a loop-catchment slot, a coiling wheel, a passive spool-rewinding device, or an active DC-motor-driven eSpooler. See the eSpooler feature page for the active variant.

Combiner / Splitter aka "Hub" - on gear-per-gate designs, the physical manifold that merges every gate's individual bowden into the one tube feeding the toolhead. Used interchangeably with "splitter" even though nothing is actually being split. This is purely a description of physical hardware - Happy Hare has no software concept of a combiner, and doesn't do anything special to coordinate access to one. Note that multiple MMU units can be connected to the same printer with additional splitters in the bowden path.

Sync-feedback buffer—sometimes incorporated within a splitter and called a "Hub" or just a ”Buffer” casually, which can be a bit confusing: this is a sensor that detects tension or compression across the filament path and is used to keep the gear and extruder steppers synchronized so they don't fight each other. Sensor designs typically incorporate a few millimetres of filament slack which is where the “buffer” nickname / term comes from. However, it's job is to sense tension/compression, not buffering or catching loose filament. Happy Hare exposes this as sync_feedback_state (compressed/expanded/neutral/disabled) in Printer Variables and reuses it to drive FlowGuard and tangle-prevention.
Recent advancements have seen new sensors introduced that use an analog interface (ADC) to provide proportional, real-time positional telementry to actively manage filament tension and compression. These are the ultimate sensor design and are fully supported by Happy Hare.

Selector mechanisms¶

Every MMU needs some way to engage filament and the gear stepper for a gate. How that's achieved splits designs into a few families. Happy Hare introduced and uses informal shorthand for the three main types - "Type-A", "Type-B", "Type-C" - which the community has embraced:

Tip

The diagrams below show every optional sensor a design could have, not what any one build necessarily does.

Shared gear stepper, moving selector ("Type-A")¶

One gear stepper is shared across every gate, and a separate selector mechanism moves to line up with the chosen gate. This is the most common approach today, because it scales to a large number of gates cheaply - ERCF and Annex Tradrack both work this way. The actual moving mechanism varies by design: a linear carriage, one index switch per gate, a rotary carriage, or a servo-driven arm.

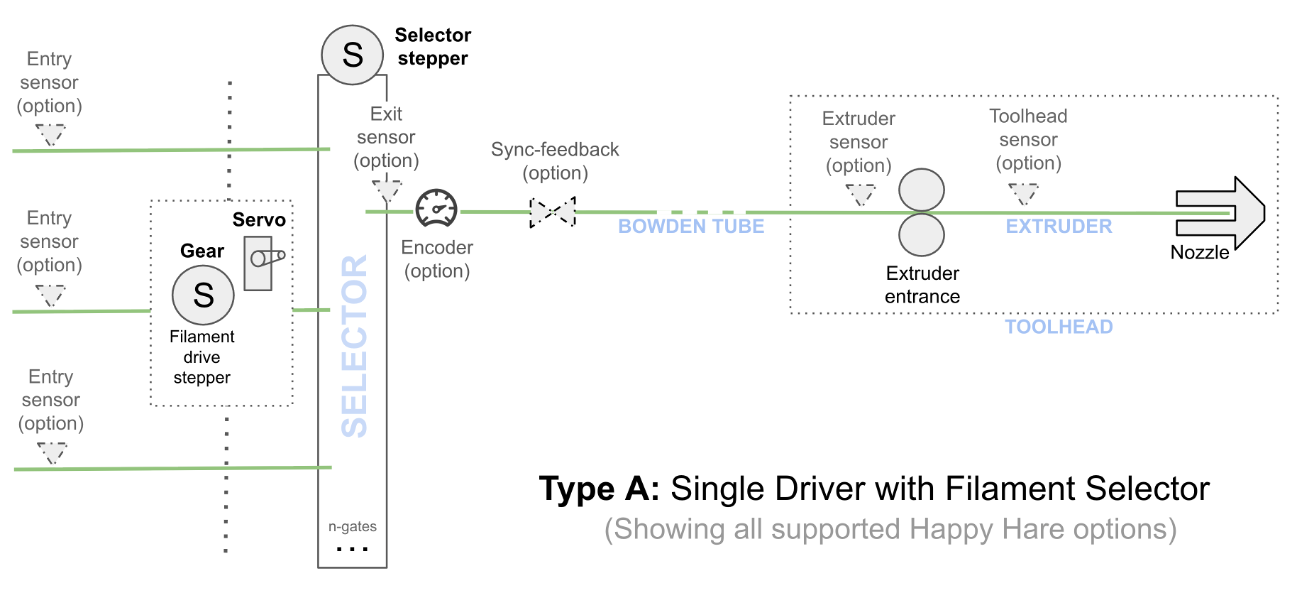

Type A: single shared gear stepper and filament drive, with a moving selector choosing the gate

Trade-offs: cost-effective for a large number of gates, straightforward bypass support, scales well - but the moving selector itself needs a higher-quality build and tends to require more tuning/troubleshooting than a gear-per-gate design.

Examples:

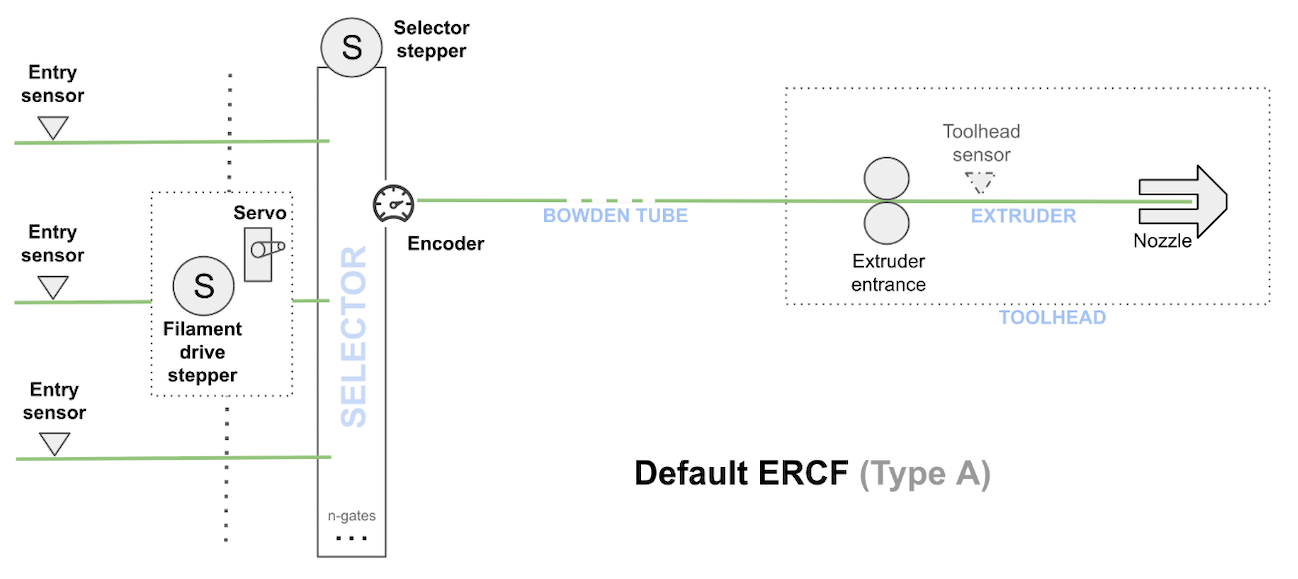

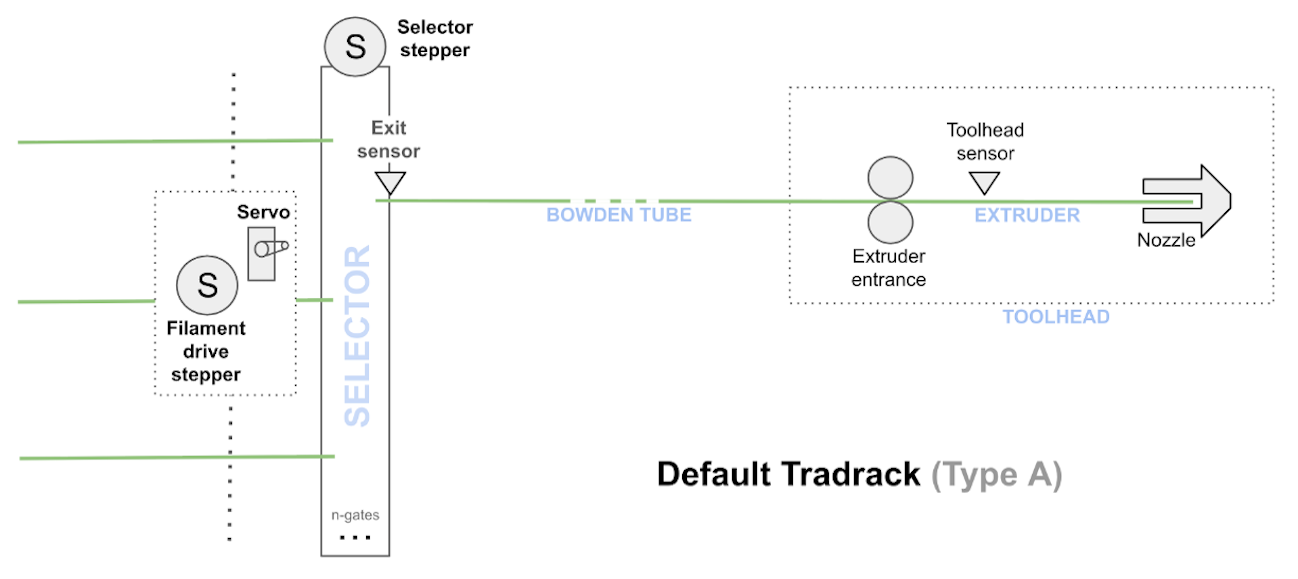

Default ERCF sensor layout: pre-gate sensors, encoder, toolhead sensor Default Tradrack sensor layout: gate sensor, toolhead sensor

ERCF relies on the encoder exclusively for gate homing and move validation; Tradrack uses a shared exit sensor as it's reference point instead, with an encoder as an optional add-on.

Gear-per-gate, no moving selector ("Type-B")¶

Every gate has it's own dedicated gear stepper, so there's no mechanism to move at all - popularized by Bambu Lab's AMS, with open-source designs like Box Turtle, Night Owl, Angry Beaver, 3MS, Quattro Box, KMS and EMU all working the same way. The trade-off is efficiency for scale: adding gates means adding motors and drivers, so these designs are usually capped around 4 gates per unit before the electronics get unwieldy. A physical combiner merges every gate's bowden into one feed to the toolhead (see Terminology above).

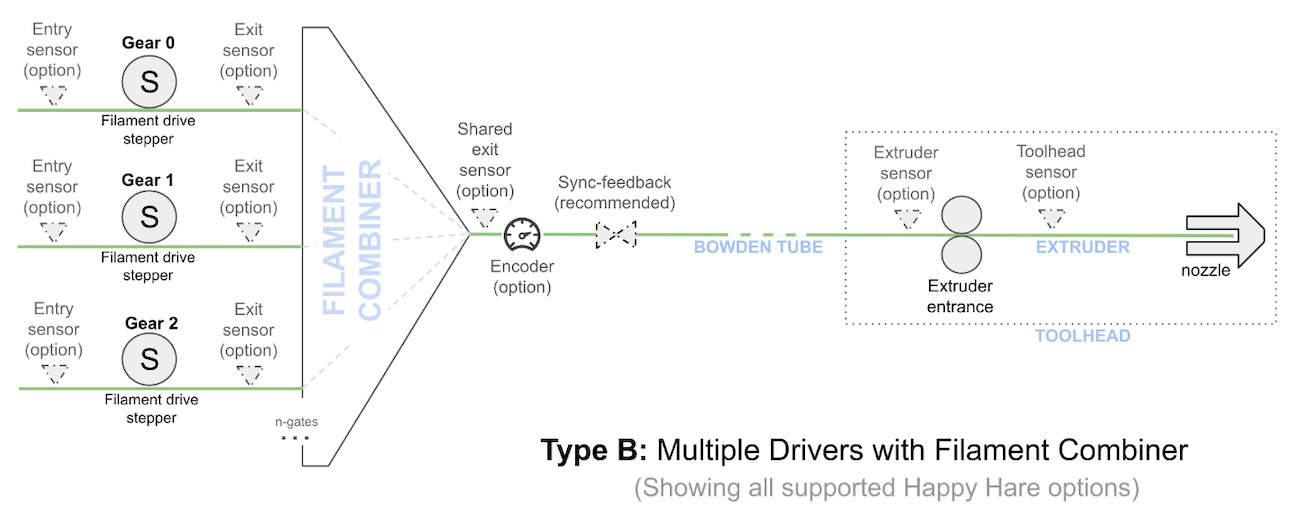

Type B: one gear stepper per gate, filament combiner, no moving selector

Trade-offs: easy to build, needs less tuning - but a more costly build per gate, generally capped at a handful of gates, and bypass support is harder to arrange than on a Type-A design. Multiple Type-B units can still be combined into one Happy Hare machine to get past the per-unit gate cap - see Multi-unit machines below - Happy Hare just doesn't coordinate two combiners on the same bowden path, since that's not something it models.

Example:

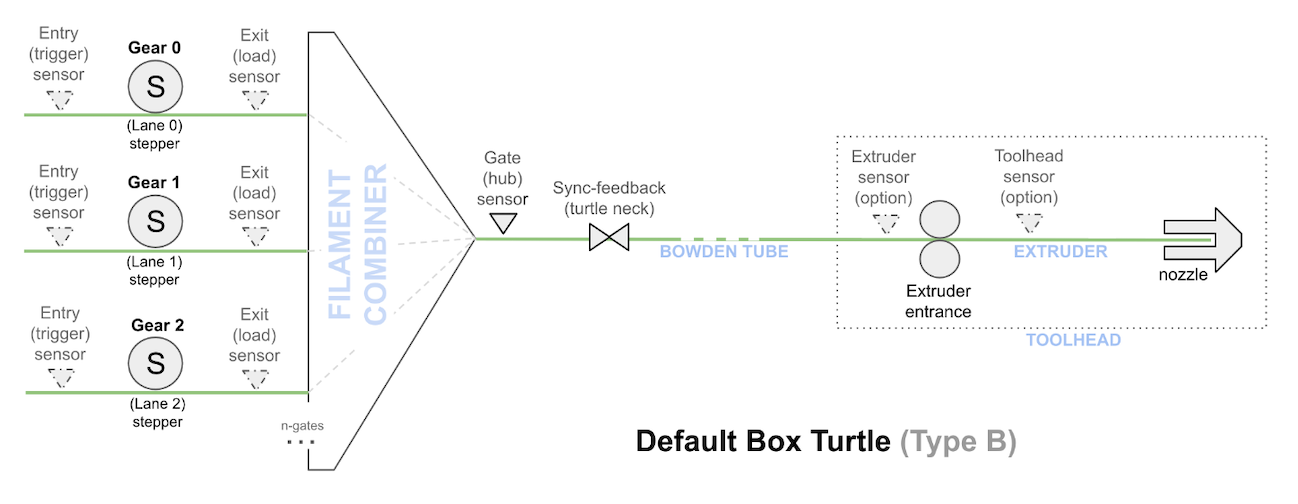

Default Box Turtle sensor layout: pre-gate and post-gear sensors per lane, shared hub sensor, turtle-neck sync-feedback

Gear-per-gate and a moving selector ("Type-C")¶

A hybrid: every gate has it's own gear stepper (as in Type-B), and there's still a physical carriage that moves to line the selected gate up with the extruder path (as in Type-A).

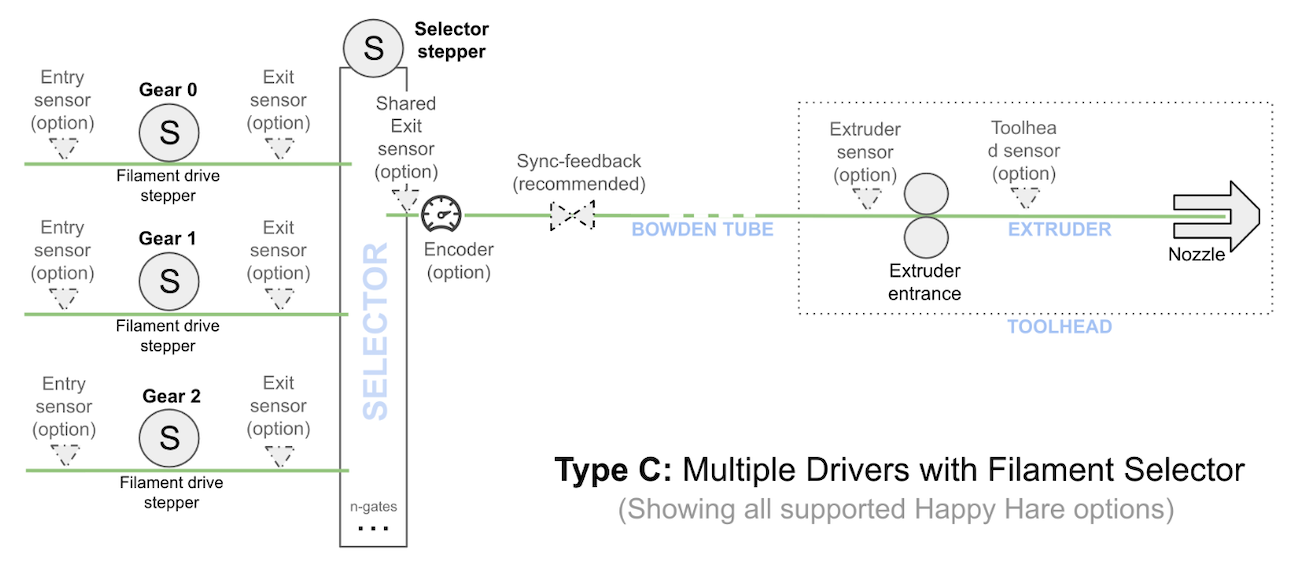

Type C: one gear stepper per gate, plus a moving selector

No vendor defaults to this yet, but it's available as a manual selection for a custom MMU, and would in principle combine Type-B's per-gate driving force with Type-A's more forgiving gate-count scaling, at the cost of needing both a selector and a full set of gear motors.

Fully custom, no built-in mechanism¶

A design can also skip Happy Hare's built-in selector mechanisms entirely and implement gate selection with it's own gcode macros - for hardware that doesn't fit any of the patterns above.

Which vendors use which mechanism¶

Vendor / type	Mechanism family	Informal type
ERCF	Shared gear stepper, moving carriage + servo grip	Type-A
Tradrack	Shared gear stepper, moving carriage + servo grip	Type-A
BTT ViViD	Shared gear stepper, one index switch per gate	Type-A
3D Chameleon	Shared gear stepper, rotary carriage	Type-A
MMX / PicoMMU	Shared gear stepper, servo-driven selection	Type-A
MMX6 / Low Rider	Shared gear stepper, rotary carriage	Type-A
HTLF	Shared gear stepper, rotary cam selector	Type-A
Box Turtle, Night Owl, Angry Beaver, 3MS, Quattro Box, KMS, EMU	Gear-per-gate, no moving selector	Type-B
(custom MMU only)	Gear-per-gate + moving carriage	Type-C
(custom MMU only)	Fully custom, gcode-macro-driven	-

See Code Layout for the exact class each of these maps to in the code, if you're extending Happy Hare rather than just choosing a vendor in menuconfig.

Multi-unit machines¶

A Unit is one physical MMU device - one Box Turtle, one ERCF, and so on. A Machine is the logical combination of one or more units, managed by Happy Hare as a single MMU.

Units in one machine don't have to match - Happy Hare ships a real tested configuration combining an ERCF unit (9 gates, moving-carriage selector) with a BTT ViViD unit (4 gates, indexed-switch selector) on the same printer, 13 gates in total. Gates are numbered contiguously across every unit in the machine (the ERCF unit owns gates 0-8, the ViViD unit owns gates 9-12 in that example) rather than restarting per unit, and a single logical tool (T0, T1, ...) can map to a gate on any unit - crossing from one unit to another mid-toolchange is a normal, handled case, not a special one. The one real constraint across units: at most one unit in a machine may expose a selectable bypass gate. Of course no selectable bypass is required - it can simple be an alternative filament feed path and in this case selection is simply the disabling to MMU filament movement.

Supported sensors¶

Every sensor below is optional - every design needs as a minimum, a way to establish a homing point near the gate (for parking) and another near or in the extruder (for accurate loading). Which specific sensors provide that varies by design and budget.

Tip

If you're coming from the older wiki: the "pre-gate" sensor is now called the entry sensor, and the "gate"/"post-gear" sensor is now called the exit sensor. Same purpose, new names.

Sensor	Purpose
Entry sensor (per gate)	Detects filament arriving at/leaving each gate. Drives filament autoload (selector moves to a gate as soon as filament is inserted), keeps the gate-availability map current, and can act as an early runout trigger.
Exit sensor (per gate)	Sits after the gear stepper on each gate. It provides a homing point close to the MMU once a gate is selected. It can also trigger runout on that gate.
Shared Exit sensor	Sits after combiner (shared, one per unit) typically on the exit of the "Hub". Provides a homing point close to the MMU once a gate is selected and driving, and can also trigger runout.
Encoder	Measures filament movement for move validation and clog detection, and can substitute for (or combine with) the exit sensor as a homing reference. Some designs (ERCF) rely on it exclusively; others (Tradrack) treat it as optional extra reliability on top of a shared exit sensor.
Sync-feedback sensors (compression / tension / proportional)	Inline in the bowden between the MMU and printer. Commonly called a "Buffer". The sensor(s) detect the gear stepper and extruder pulling against each other, for stepper syncing. The compression sensor can also serve as an extruder-entry homing point and simplify bowden-length calibration. A modern proportional (analog) design alleviates the need for extruder entry and even toolhead sensors as well allowing filament tension/compression management and FlowGuard - Highly recommended
Extruder entry sensor	Sits just before the extruder gears. Provides a homing point at the end of the bowden move, can trigger automatic bypass loading, and gives a reliable "cleared extruder" reference point before a fast unload.
Toolhead sensor	Sits after the extruder entrance, before the hotend - arguably the single most useful sensor: the most reliable way to know filament is actually loaded (especially after a restart), the most accurate homing point near the nozzle, and what toolhead calibration uses to measure residual filament.
Stallguard-based virtual sensors	If the relevant stepper has TMC stallguard configured, Happy Hare can detect a mechanical stall as a virtual endstop with no extra wiring: on the gear stepper (an alternative way to detect hitting the extruder entrance), or on the extruder stepper itself (experimental nozzle-collision detection).
Selector sensors	A physical switch for selector homing, plus an optional stallguard-based selector endstop used for touch-positioning, blocked-gate recovery, and travel-limit detection during calibration.
NFC/RFID reader (per gate)	Reads a tag on the spool and can also act as a "tag detected" homing endstop during a gear move.

Note

Virtual versions of some of these sensors can be setup when using hall-effect sensors such as filament diameter monitor on the extruder entrance for Qidi printers. Notes on the setup of these are present in the config files but it is often easier to sk on the Happy Hare Discord forum.

EndlessSpool¶

If a gate runs out of filamaent (detected by an entry sensor, exit sensor, or the encoder), and EndlessSpool is enabled, Happy Hare unloads, remaps the current tool to another gate in the same configured group, reloads, and resumes the print automatically - the potentially-kinked filament at the spool end never has to pass back through the MMU's own mechanisms, which is what makes this more reliable than reacting to a nozzle-side runout.

Important

EndlessSpool does nothing until you actually configure endless_spool_groups - left at it's default, every gate is it's own group of one, so there's never an alternative gate to fall back to and a runout always ends in an error instead. Group gates loaded with the same filament together, e.g. two gates both holding black PLA.

What would the ideal MMU look like?¶

Speculating a little: the strongest design hasn't been built yet, and would probably be a Type-C hybrid - a dedicated, direct-drive gear stepper per gate for speed, a small-travel linear selector (a few mm per gate, no servo) so gate count isn't limited by selector complexity, sync-feedback and an exit sensor built into the selector itself, and a passive (not active-DC) filament buffer for simplicity. Add a shared spool-identification reader (RFID/NFC or QR), pre-gate sensors on every gate for automatic loading, a bypass gate with no gear stepper for manual/"+1" use, and a toolhead purpose-built for MMU printing - integrated cutter and toolhead sensor, easy unclogging. Skip post-gear sensors, encoders, active DC-rewinders and selector servos entirely - each is a maintenance/reliability cost that the rest of the design above doesn't need.

Happy Hare already has FlowGuard and tangle-prevention built on top of sync-feedback, which covers a good part of what this wishlist needs from an integrated sensor - the mechanical side (a hybrid Type-C build with a small selector and passive buffer) is still the part nobody's shipped yet. When someone does, Happy Hare is already ready to support it.
