Feature: TD-1 Filament Measurement¶

Concept¶

A TD-1 scanner adds two measured attributes to the filament at a gate: transmission distance (TD) and TD color. TD describes how far light penetrates the filament: low values mean more opaque filament, high values mean more transparent filament. TD color is the scanner's measured color, stored separately from the gate's ordinary filament color. Happy Hare stores these attributes as gate_td and gate_td1_color.

Both attributes work independently of RFID tags and spool IDs. No NFC reader, Spoolman record or spool assignment is required. The measured color can also supply the ordinary filament color used by displays and LEDs, subject to the color rules below.

AJAX/BIQU TD-1 scanners connect to the printer host over USB and are managed by Moonraker's [td1] component. They support two arrangements, independently or together:

• In-path scanners (td1_devices) measure filament as it travels toward the extruder. Use one per gate, or one in a shared bowden path with its serial repeated for every gate it serves. Gates without a scanner can be left blank.
• An off-path scanner (td1_device) sits on the bench or beside the spools. Present filament by hand; its measurement is held as pending for the next gate you load or preload. That action determines which gate receives the TD and TD color. No scan distance is needed for this scanner.

Three example setups¶

These illustrations show scanner placement schematically for some possible configurations. Note that variations and combinations are also possible.

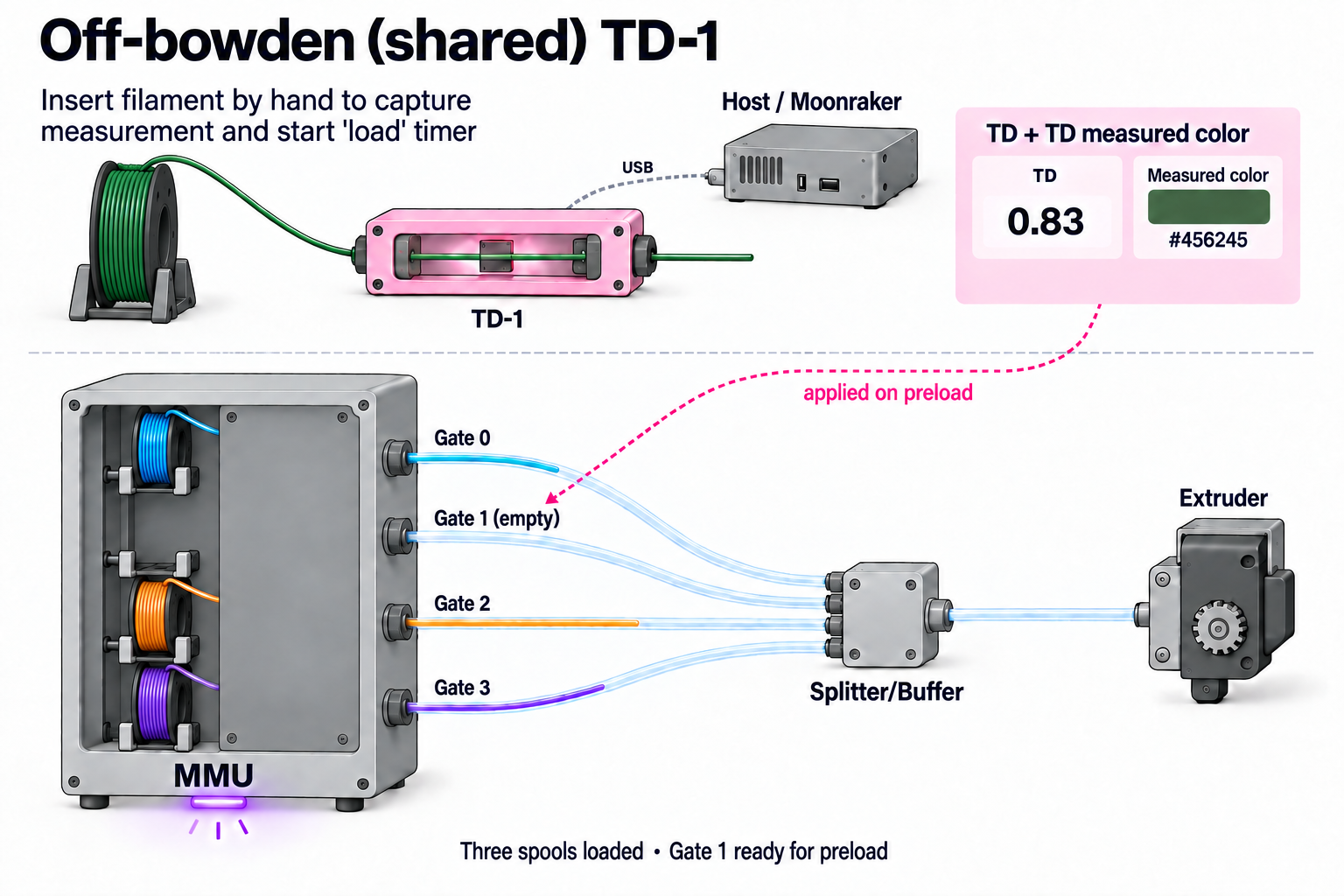

Off-path (shared) "bench" reader: present filament at the bench, then load or preload the intended gate to apply its TD and TD color. The reader is separate from the printing path and is configured with td1_device. Here the MMU has four spool positions: three are loaded with different colors, and Gate 1 is empty, ready for the filament being measured. The example bench reading is TD 0.83 and measured color #456245. Each spool feed exits through a gate into its own bowden tube; the four tubes meet at a splitter, with one common tube continuing to the extruder. A gate names a spool feed, rather than a separate device outside the MMU.

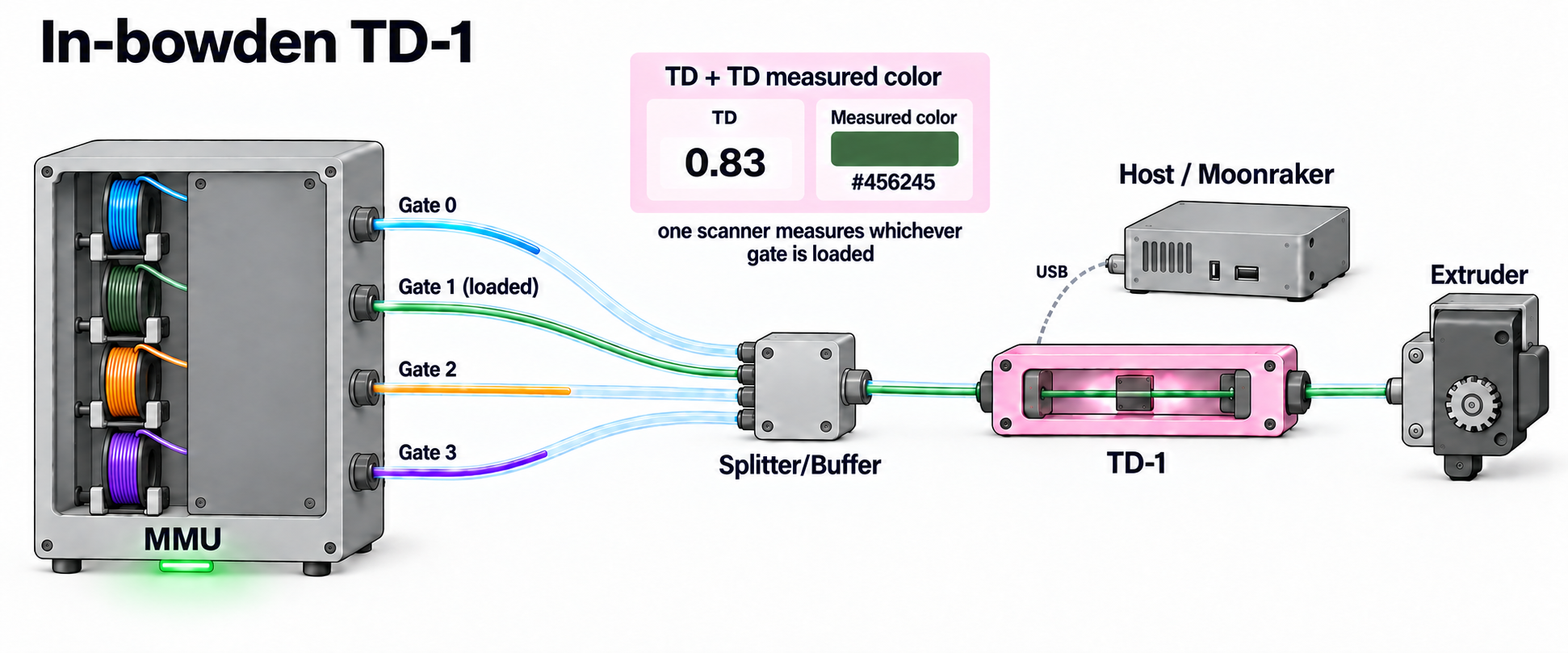

One in-path reader serving every gate: place the reader in the common bowden path, after the Splitter/Buffer. Every selected filament passes through it. Here Gate 1's green filament is loaded through the TD-1 to the extruder, while the other gates' filaments remain parked. Repeat the reader's serial for every gate in td1_devices.

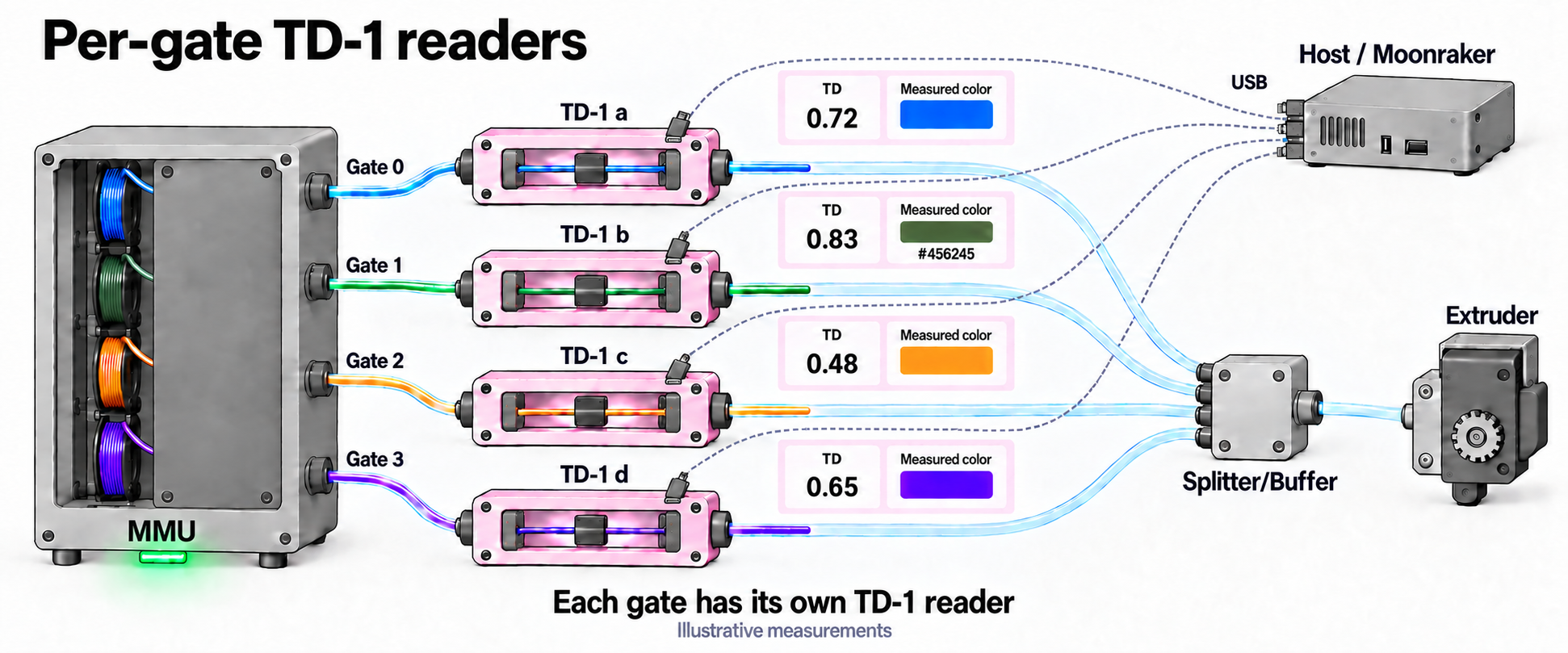

Per-gate readers: each gate has a reader on its own filament path, as the bowden exits the MMU and before the Splitter/Buffer. Each reader connects to the host by USB; list their serials in gate order in td1_devices. Here each filament has passed just beyond its reader, with an individual TD and measured-color window. The readings are illustrative.

Hardware Setup¶

Examples below use the default unit name unit0. Substitute your configured Klipper object name in unit-specific sections, object references and pin prefixes.

Moonraker and USB¶

Connect the scanner to a USB port on the printer host, then enable its component in moonraker.conf and restart Moonraker:

[td1]

Happy Hare's [mmu_server] Moonraker integration must also be installed and up to date. It transfers readings while Happy Hare is running commands; there is no MCU wiring, pin assignment, or [mmu_td1_reader] section to add.

Use a Moonraker version that provides the TD-1 data and reboot endpoints. Read the USB serials from /machine/td1/data on your Moonraker server, or run MMU_TD1 READ=1 to discover the scanners Moonraker reports. Copy the serial exactly; the examples below use placeholder serials.

Assigning scanners¶

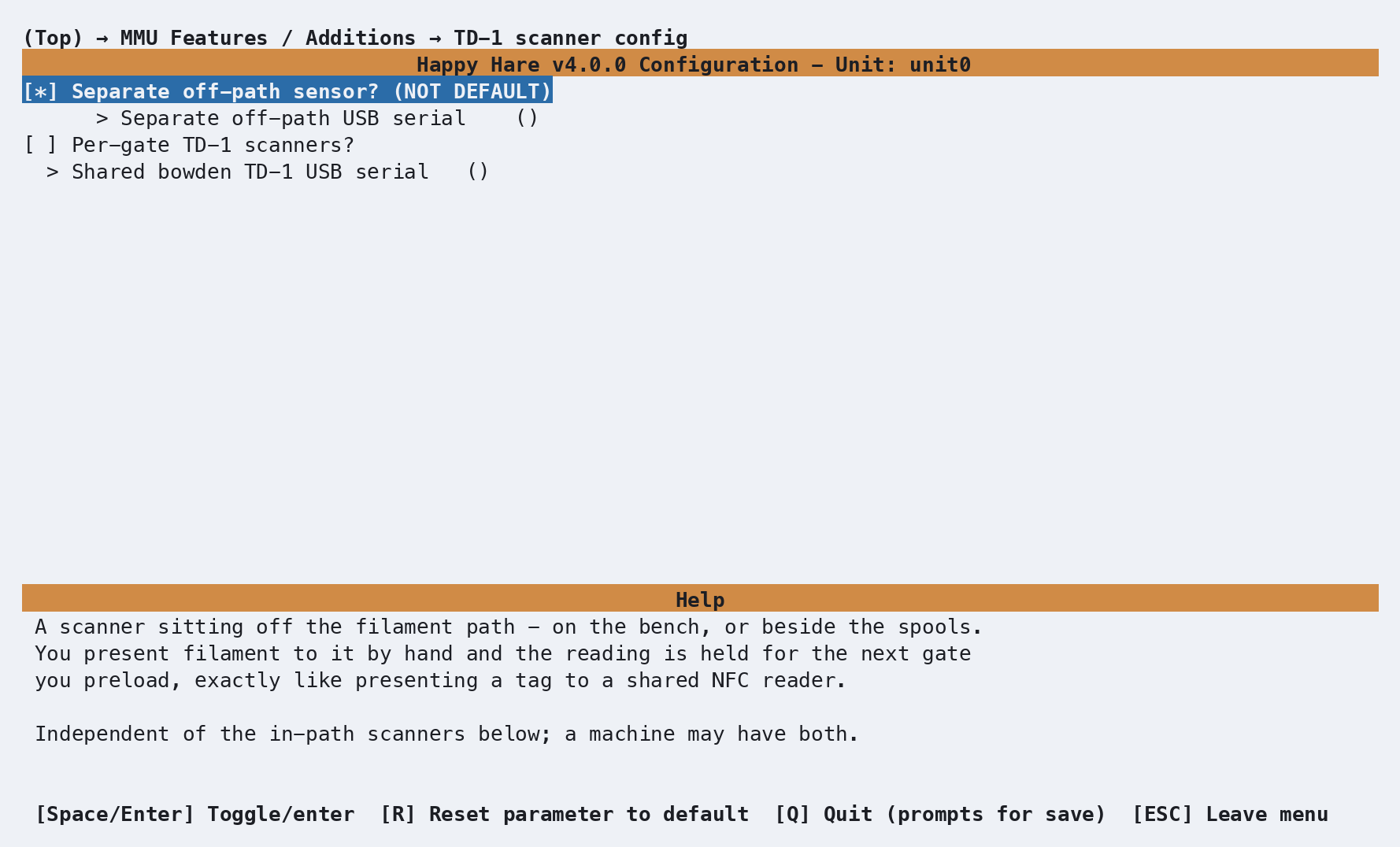

In menuconfig, open MMU Features / Additions → TD-1, enable Has TD-1 scanner(s)?, then open TD-1 scanner config:

The assignments live in the existing [mmu_unit unit0] section of mmu_hardware.cfg. For a four-gate unit with one shared bowden scanner and one bench scanner:

[mmu_unit unit0]
td1_devices : TD1-BOWDEN, TD1-BOWDEN, TD1-BOWDEN, TD1-BOWDEN
td1_device  : TD1-BENCH

For mixed in-path coverage instead:

td1_devices : TD1-A, TD1-B, , TD1-A

This gives gates 0 and 3 the same scanner, gate 1 its own, and gate 2 none. The list must have one entry per gate in that unit's local gate order; use an empty entry, not -, for a gate without a scanner. Omit td1_device if there is no off-path scanner. For an off-path-only setup, omit td1_devices.

Parameter Setup¶

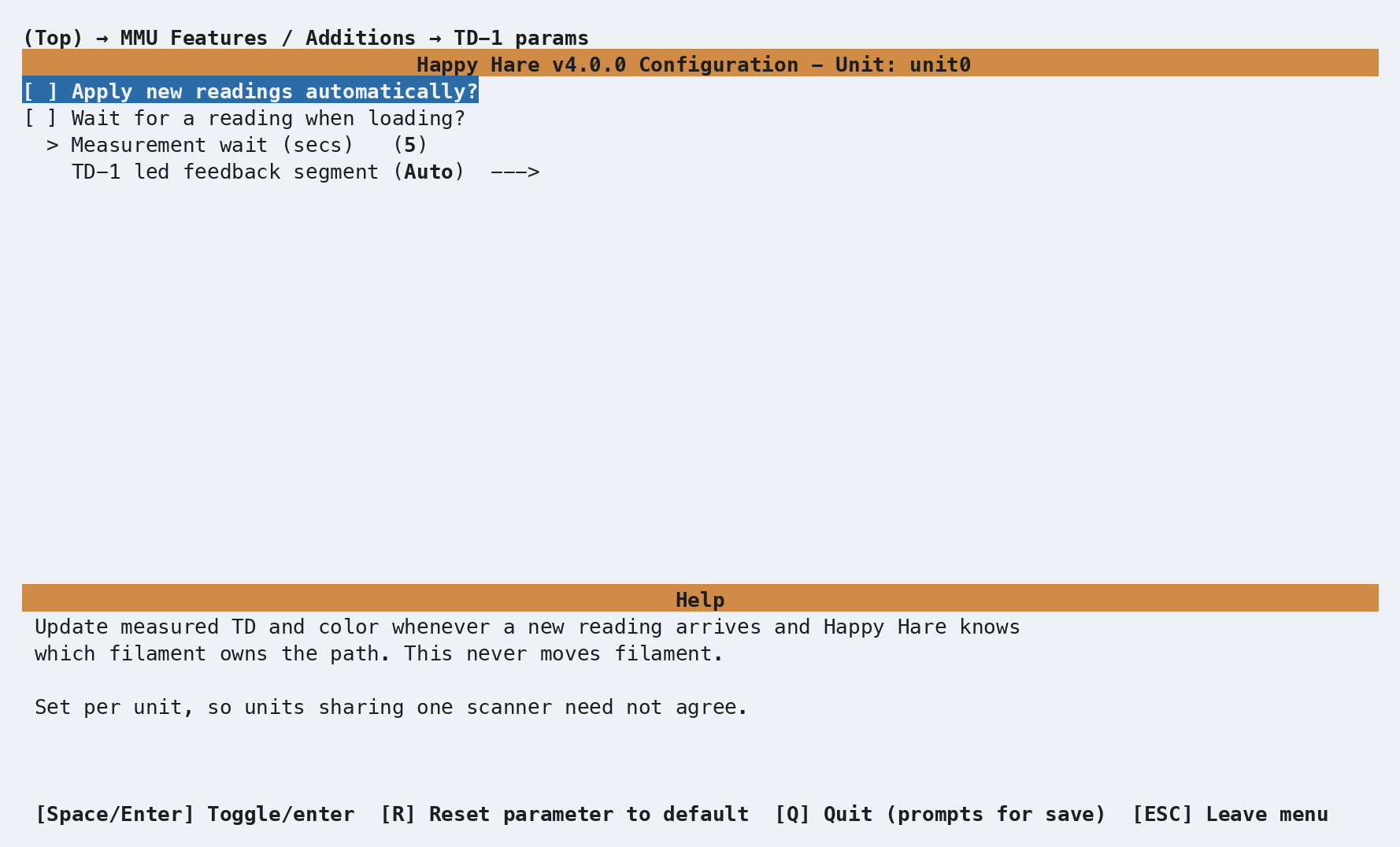

The TD-1 params menu writes these settings into the unit's existing [mmu_unit_parameters unit0] section in mmu_parameters.cfg:

[mmu_unit_parameters unit0]
td1_capture_timeout : 5
td1_auto_update     : 0
td1_capture_on_load : 0
td1_led_segment    : auto

Capture policy belongs to the unit doing the work, so units sharing one scanner can use different settings. Runtime MMU_TEST_CONFIG edits take effect at the next use. MMU_TD1 ... AUTO=1 overrides the configured automatic-update policy for that scanner until restart.

Off-path staging is automatic even with td1_auto_update: 0; that parameter controls attribution of in-path readings. A pending bench measurement uses spoolman_pending_id_timeout in mmu.cfg (default 20 seconds). Despite the setting's name, it also controls this measurement window when Spoolman is off. A newly staged measurement restarts the window.

Color and LED feedback¶

The scanner's TD color is always stored as a measured attribute, even when the gate already has a filament color. It also fills the ordinary filament-color field if that field is empty. An existing manually assigned or Spoolman-supplied filament color takes precedence in that field, without replacing the stored TD color.

Use MMU_TD1 GATE=2 SET_COLOR=1 to copy the measured color into the ordinary filament-color field explicitly. If Spoolman supplies the gate's color, a later refresh can restore it.

The adopted color is RRGGBBaa: its alpha channel comes from TD, so more transparent filament appears more transparent. Existing color displays and LED effects use that ordinary gate color. Clearing the measurement also removes its adopted color if it still matches; a replacement color supplied by the user or Spoolman is preserved.

For optional transient LED feedback, map effect_td1_read and effect_td1_fail in the unit's [mmu_leds ...] settings to your chosen LED effects. Unmapped effects do nothing. A new measurement flashes the read effect; a capture timeout flashes the failure effect. Repeated equivalent bench readings do not flash every poll.

A pending TD-1 measurement also activates the existing pending-assignment countdown (effect_pending_spoolid / effect_pending_spoolid_expiring), using spoolman_led_segment. These existing setting names apply to pending measurements too; no spool ID is required for the countdown.

Commands¶

Full references: MMU_TD1, MMU_CHECK_GATE, and MMU_GATE_MAP.

Inspecting and controlling scanners¶

MMU_TD1 never moves filament. READ=1 polls Moonraker; it does not drive filament through the scanner or guarantee a new optical measurement.

MMU_TD1                          # Status of all known scanners and pending measurement
MMU_TD1 DETAILS=1                # Include attribution and per-gate measurements
MMU_TD1 GATE=3 READ=1            # Poll and report the scanner serving gate 3
MMU_TD1 SHARED=1 ENABLE=0        # Disable use of the off-path scanner
MMU_TD1 SHARED=1 ENABLE=1        # Enable it again
MMU_TD1 GATE=2 AUTO=1            # Automatic updates until restart
MMU_TD1 GATE=2 REGISTER=1        # Apply the latest measurement to this explicit gate
MMU_TD1 GATES=0,1 SET_COLOR=1    # Force measured colors into the filament-color fields
MMU_TD1 GATE=2 INIT=1            # Reboot this scanner through Moonraker
MMU_TD1 INIT_ALL=1               # Reboot every known scanner

Specify one operation at a time; READ, DETAILS and QUIET are modifiers.

REGISTER=1 requires one explicit GATE=. It uses that gate's in-path scanner first, otherwise the unit's off-path scanner, otherwise a pending measurement. This attaches TD and TD color to the chosen gate without a load or preload. Check the reported reading and age to ensure it describes the filament at that gate. No spool ID or RFID is required.

Measuring gates¶

MMU_CHECK_GATE GATE=2 TD1=1
MMU_CHECK_GATE ALL=1 TD1=1
MMU_CHECK_GATE TOOLS=0,2 TD1=1
MMU_CHECK_GATE GATE=2 TD1_UPDATE=1

TD1=1 adds measurement to the normal availability check for gates without a stored TD. Filament travels down its normal bowden path to the extruder entry and unloads again. The measurement traverse never enters the extruder and needs no heating or scanner-distance calibration. Normal MMU motion calibration is still required. If a tool is already loaded, normal unloading and, outside a print, restoration of that tool can still involve the usual hotend operations.

TD1_UPDATE=1 also measures gates that already have TD and implies TD1=1. Gates without a usable scanner still get an availability check. A scanner failure reports a warning without marking detected filament unavailable; an unsafe or failed filament move still requires recovery.

These options work during a print and in a print-start pre-check. Each unmeasured gate costs a bowden traverse; choose only the gates or tools you need. Existing measurements survive restarts, but are cleared when the filament identity changes, a gate is emptied, or its map is reset.

Editing TD manually¶

MMU_GATE_MAP DETAILS=1           # Show measured TD and color
MMU_GATE_MAP GATE=2 TD=4.2        # Set a positive transmission distance
MMU_GATE_MAP GATE=2 TD=''         # Clear TD and measured color
MMU_GATE_MAP BYPASS=1 TD=4.2      # Set TD for bypass filament

Manual TD editing works independently of Spoolman, including in every Spoolman mode. Automatic scanner assignment is gate-based; use the manual bypass command for bypass filament.

Cancelling a pending measurement¶

MMU_TD1 CLEAR_PENDING=1          # Discard the staged TD and TD color

CLEAR_PENDING=1 discards the bench measurement waiting for the next load/preload. Measurements already stored on gates are unaffected. The clear preserves repeat-read suppression, so leaving the same filament in the scanner does not immediately stage it again.

If other data is pending from an optional NFC or Spoolman workflow, it is preserved with its original timeout. The countdown ends when nothing remains to apply. See Spoolman / Filament Hub for cancelling all pending data together.

Printer variables exposed¶

These values are available under printer.mmu; per-gate lists use global gate numbers across all units:

printer.mmu_machine.unit_N exposes configured td1_device and td1_devices assignments where present. Live scanner readings and connectivity remain available through Moonraker's /machine/td1/data; use MMU_TD1 DETAILS=1 for console inspection.

Tuning¶

Bench measurement¶

1. Present filament to the off-path scanner and wait for MMU_TD1 to show a staged measurement.
2. Load or preload the intended gate before the timeout, for example MMU_PRELOAD GATE=2. Its TD and TD color are updated together.
3. Check MMU_GATE_MAP DETAILS=1.

For filament already at a gate, use MMU_TD1 GATE=2 REGISTER=1 to attach the reading directly instead of preloading again.

Filament left in the scanner stages once despite small measurement jitter. A materially different TD or color stages a new reading. After the pending window expires, filament still presented can establish a new pending measurement. If the scanner reports filament removal, removal restarts the live window so you have time to walk to the printer; this behavior depends on the device and is not guaranteed by Moonraker's API.

Optional NFC / Spoolman use¶

You can stage a tag or spool ID as well as a bench measurement before preloading. They share the pending timeout, and staging either renews the window for the measurement too. The preload applies the other attributes first, then adds TD and TD color.

If assigning a spool ID or RFID directly to an existing gate, do so before measuring or using REGISTER=1: changing either tells Happy Hare that the gate's filament changed and clears its previous measurements. This only matters when using those optional features. TD and TD color remain local gate attributes; TD-1 does not write them to a Spoolman spool record.

In-path measurements¶

1. Confirm the serial and connectivity with MMU_TD1 GATE=2 READ=1.
2. Run MMU_CHECK_GATE GATE=2 TD1=1, then inspect the gate map.
3. If readings arrive too late, increase td1_capture_timeout and retry with TD1_UPDATE=1 flag to MMU_CHECK_GATE to force a re-read.
4. Once a single gate works reliably, choose explicit batch checks, capture-on-load, or automatic updates to suit your workflow.

On a shared scanner, a late reading from a previous traversal may be discarded instead of assigned to the next gate. This protects gate attribution and assumes readings arrive in traversal order. Allow enough time for the scanner to respond before moving on to another gate.

Troubleshooting¶

• Bridge unavailable or polling fails — check [td1], the Moonraker version, and Happy Hare's [mmu_server] integration. Restart Moonraker after configuration or component updates and confirm that /machine/td1/data responds.
• Scanner disconnected or unknown — check USB power and connection, then compare the configured serial with Moonraker's reported serial. MMU_TD1 SERIAL=TD1-BOWDEN READ=1 helps inspect a specific device; INIT=1 reboots it through Moonraker.
• Connected but no measurement — a connected scanner may not have measured filament yet. Present filament or run a TD-1 gate check; READ=1 alone cannot move filament past the optics.
• Measurement timed out — verify that the filament actually crosses the configured scanner and that the hardware produces readings at the travel speed. Increase the capture timeout if reporting is slow.
• Displayed filament color did not change — check the stored TD color with MMU_GATE_MAP DETAILS=1. An existing filament color takes precedence for display; use SET_COLOR=1 to use the measured color there too.
• Measurement disappeared — emptying or resetting a gate clears its measurements. If you also use spool IDs or RFID, changing those clears measurements too; see Optional NFC / Spoolman use.
• Bench reading did not stage again — equivalent readings are suppressed. An explicit pending clear retains that suppression; a normal timeout allows re-staging. Use REGISTER=1 to apply a reading deliberately to a specific gate.
