Feature: Spoolman / Filament Hub¶

Concept¶

Spoolman is a self-hosted database for tracking a filament spool collection - typically run alongside Moonraker on the same Raspberry Pi. Happy Hare integrates with it in two independent ways:

• Usage tracking and activation. When Happy Hare selects a gate's filament, it tells Spoolman (via Moonraker) which spool is now active, so usage is logged against the right spool and the previous one is deactivated.
• Filament attributes. Spoolman can supply material, color and other attributes for a gate directly, instead of (or overriding) whatever is set locally - this is also refreshed in bulk whenever the MMU initializes.

Both depend on a SpoolId being associated with a gate. How that association is set - and who "wins" when the local gate map and the Spoolman database disagree - is controlled by spoolman_support, a single setting with four modes:

off and readonly never write gate assignments to Spoolman - the local gate map (persisted in mmu_vars.cfg) is the only copy that exists. push also writes the local gate map to Spoolman, purely so it's visible there; the local copy is still the source of truth. pull reverses that: Spoolman becomes the source of truth, useful for a print farm managing several printers' gate assignments centrally, and the local gate map is kept in sync with it rather than the other way round.

Each gate's entry in the local gate map carries (at minimum) a filament availability status, material, color, a load/unload speed override, and - if Spoolman is enabled - a SpoolId. MMU_GATE_MAP reports it:

Gates / Filaments:
0 : On spool;  Id: 3    TPU  | 210C | DC6834 | Filamentum Industrial Flexifill TPU 98A Grey | RFID
1 : Buffered;  Id: 2    PETG | 220C | DCDA34 | n/a
2 : Empty;     Id: 1    PLA  | 200C | 8CDFAC | n/a
3 : Unknown             ABS  | 240C | n/a    | n/a [Speed:50%]

(The real console output also prefixes each line with a small color swatch and any tools mapped to that gate - simplified here for readability.) A gate showing | RFID has a tag UID cached locally from a scan - see NFC/RFID Reading, which covers the readers that populate gates automatically instead of by hand.

If a gate has a SpoolId set, Spoolman's attributes for that spool overwrite whatever material/color/name were set locally - so once a SpoolId is current, keeping it up to date as spools are swapped is enough; everything else follows automatically. That's also true of LEDs, if configured, which reflect the spool's color.

Moonraker Setup¶

Happy Hare's Moonraker extension (mmu_server) needs a few settings in moonraker.conf:

[mmu_server]
enable_file_preprocessor: True
enable_toolchange_next_pos: True
update_spoolman_location: True

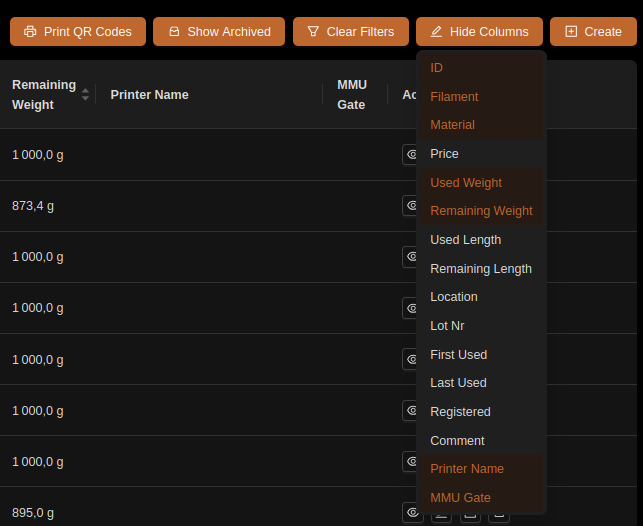

Any spoolman_support mode other than off requires Spoolman 0.18.1 or later - Happy Hare checks the connected version at startup and won't activate itself against an older one (you'll see an "Incompatible Spoolman version" message on the console). Once connected, it adds three extra fields to Spoolman's spool records: Printer Name, MMU Gate, and RFID (the tag UID(s) bound to that spool - a spool can carry more than one, e.g. a tag stuck on each side, see NFC/RFID Reading). They're hidden by default in the Spoolman web UI - open Hide Columns and select them to see gate assignments there:

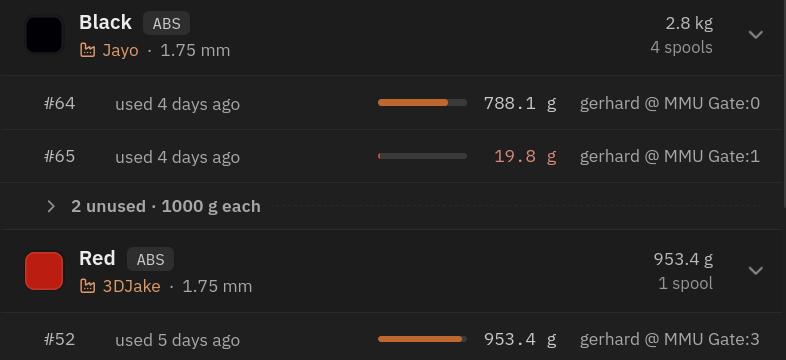

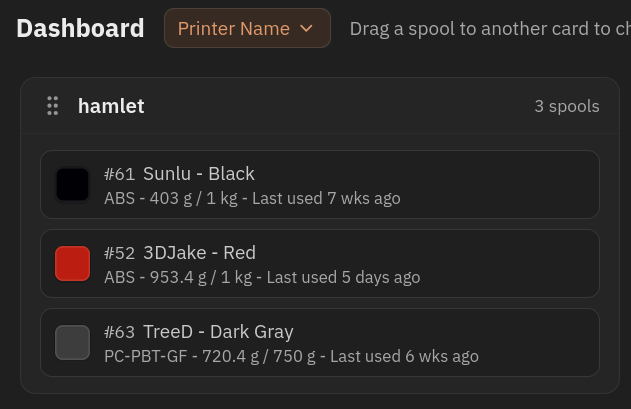

An alternative to showing these columns is Spoolman's own "Location" field, which update_spoolman_location (above) keeps set to a <printer> @ MMU Gate:<n> summary - useful with multiple printers/MMUs and less cluttered than the extra columns.

Parameter Setup¶

In mmu.cfg:

spoolman_support            : off   # off | readonly | push | pull
spoolman_pending_id_timeout : 20    # Seconds before a pending spool_id assignment is voided
spoolman_led_segment        : gate_status   # gate_status | status | both
spoolman_nfc_auto_create    : 0     # Auto-create a Spoolman spool from an unknown scanned tag - see Feature-NFC.md

spoolman_pending_id_timeout governs how long a "pending" SpoolId (set with NEXT_SPOOLID, see Tuning below, or by a shared NFC/RFID scan) stays valid waiting for the next spool to be loaded, before it's forgotten. spoolman_led_segment picks which LED segment(s) show the pending-assignment overlay, if LEDs are fitted. spoolman_nfc_auto_create only has any effect on a unit with an NFC/RFID reader and nfc_deep_read enabled, and only in push/pull mode (auto-creating a spool is a write, so off/readonly never do it regardless of this setting) - full detail on NFC/RFID Reading.

Commands¶

Full parameter reference: MMU_SPOOLMAN, MMU_GATE_MAP.

Day-to-day gate assignment normally goes through MMU_GATE_MAP, which updates the local gate map first and then syncs to Spoolman if enabled:

MMU_GATE_MAP GATE=0 SPOOLID=5          # Assign spool 5 to gate 0
MMU_GATE_MAP GATE=0 SPOOLID=-1         # Unset gate 0's spool (other attributes can still be set manually)
MMU_GATE_MAP NEXT_SPOOLID=45           # Auto-assign spool 45 to whichever gate is loaded/preloaded next (0 cancels)

NEXT_SPOOLID isn't available in pull mode - Spoolman already owns the gate assignment there, so a locally-pending one has nothing to attach to; Happy Hare rejects it with an error naming push/readonly as the modes that support it.

MMU_SPOOLMAN manages the Spoolman side directly - useful for pull mode (where MMU_GATE_MAP alone can't reach the remote assignment) and for maintenance:

MMU_SPOOLMAN                            # Show this printer's gate/spool assignments in Spoolman
MMU_SPOOLMAN GATE=1 SPOOLID=5           # Remotely associate gate 1 with spool 5 (any existing gate for spool 5 is cleared)
MMU_SPOOLMAN GATE=1                     # Unassign whatever spool is on gate 1
MMU_SPOOLMAN SPOOLINFO=1                # Show usage/remaining weight for spool 1 (0 or -1 = current active spool)
MMU_SPOOLMAN SYNC=1                     # Force a re-sync between local and remote gate maps
MMU_SPOOLMAN REFRESH=1                  # Rebuild the Moonraker/Spoolman cache, then re-sync
MMU_SPOOLMAN REFRESH=1 FIX=1            # As above, and clear any gate with more than one spool assigned to it
MMU_SPOOLMAN CLEAR=1                    # Clear every gate assignment for this printer in Spoolman

MMU_SPOOLMAN SPOOLINFO=1

Spool is: Matte Green (id: 1)
- Material: n/a
- Used: 56 g
- Remaining: 943 g

Operations combine in one call - e.g. to clear the database, fix any inconsistencies, then assign spool 6 to gate 0:

MMU_SPOOLMAN CLEAR=1 REFRESH=1 FIX=1 GATE=0 SPOOLID=6

Add QUIET=1 to suppress console output.

MMU_SPOOLMAN_TAG - registering a tag UID¶

MMU_SPOOLMAN (above) only ever assigns an existing Spoolman spool to a gate - it has nothing to do with the physical NFC/RFID tag stuck on a spool. Binding a tag's UID onto a spool record is a separate command, MMU_SPOOLMAN_TAG, kept deliberately distinct so SPOOLID=/GATE= mean one thing in each command rather than overloading them with two unrelated jobs. See Feature: NFC/RFID Reading for the reader hardware and the scanning side of this; this section is purely the Spoolman-record-writing side.

Full parameter reference: MMU_SPOOLMAN_TAG.

There are two independent ways to end up with a tag bound to a spool, depending on which one you have in hand first:

• RFID= - you already know the UID (typed in, copied from a scan, or printed on the spool's packaging) and the spool record already exists in Spoolman; write the UID directly onto it.
• REGISTER=1 - the opposite order: a tag was already scanned onto a gate (so Happy Hare has its UID cached) but it didn't resolve to any spool at the time - a blank tag, or one Spoolman had never seen before. Once a matching spool exists (created by hand, or by some other means), bind the two together without re-scanning the tag.

RFID= writes a UID onto a spool record that already exists in Spoolman - the case where a spool is registered but its tag isn't bound yet (e.g. sticking a blank tag on it):

MMU_SPOOLMAN_TAG SPOOLID=45 RFID=E2003412            # Bind tag UID E2003412 to spool 45 (replaces any existing tag(s))
MMU_SPOOLMAN_TAG SPOOLID=45 RFID=E2003499 APPEND=1   # Register a second tag on the same spool (e.g. one on each side), keeping E2003412
MMU_SPOOLMAN_TAG SPOOLID=45 RFID=''                  # Clear all tags registered against spool 45
MMU_SPOOLMAN_TAG GATE=0 RFID=E2003412                # Same, for whichever spool is currently assigned to gate 0

By default, RFID= replaces whatever tag(s) are currently registered against the spool - RFID='' (empty) clears them entirely, the supported way to unregister every tag from a spool. Add APPEND=1 to add the given tag without losing the one(s) already there instead - the case for a spool with a tag stuck on each side, so either side scans to the same spool. APPEND=1 with an empty RFID= is rejected (nothing to add); use plain RFID='' to clear instead. If the UID being written is currently registered against a different spool, Happy Hare moves it over (logging the move) and strips it from that other spool's record, rather than leaving two spools claiming the same tag.

The same "second tag on one spool" case is also available from a live scan, without retyping the UID by hand: MMU_NFC GATE=<n> REGISTER=1 APPEND=1 reads a newly-presented tag and binds it straight onto whichever spool is already assigned to that gate. A reader that scans an unknown tag and resolves or auto-creates a spool for it automatically is that same page's MMU_NFC ... REGISTER=1 without APPEND=1 - the opposite direction from everything on this page, which only ever writes onto a spool that already exists.

REGISTER=1 covers the case auto-create can't: a tag that never resolved (wrong/no metadata, auto-create disabled, or Spoolman genuinely never having seen it) and a spool for it that only came to exist afterwards, created by hand. A typical sequence, for a per-gate reader:

1. Remove the old spool, unbox the new filament, and stick a (blank, or otherwise unregistered) tag on it.
2. MMU_PRELOAD the new spool into its gate as normal - the reader scans the tag on the way in, but with nothing in Spoolman to match it against, nothing resolves. The UID is still recorded on the gate either way (see Feature: NFC/RFID Reading) - this is what makes the next step possible without a re-scan.
3. Create the spool in Spoolman by hand (often easiest with the new filament's box in front of you, to copy its parameters across).
4. Back at the printer: MMU_SPOOLMAN_TAG GATE=LAST SPOOLID=456 REGISTER=1 - GATE=LAST resolves to whichever gate was most recently preloaded, so there's no need to remember or look up its number. Happy Hare takes the UID already cached on that gate and binds it onto spool 456 - the gate map updates as a result of that write actually succeeding (via the same Moonraker callback a live scan uses), not optimistically ahead of it.

GATE= defaults to the currently-selected gate if omitted (not LAST) - useful right after preloading without needing GATE= at all, but GATE=LAST is the more reliable choice if anything else has run in between. REGISTER=1 needs spoolman_support to be readonly or push - in pull mode Spoolman already owns gate assignment, so use RFID= directly or re-scan the tag once the spool exists instead.

Printer variables exposed¶

Full reference: Printer Variables.

UI (Mainsail/Fluidd/KlipperScreen/Spoolman)¶

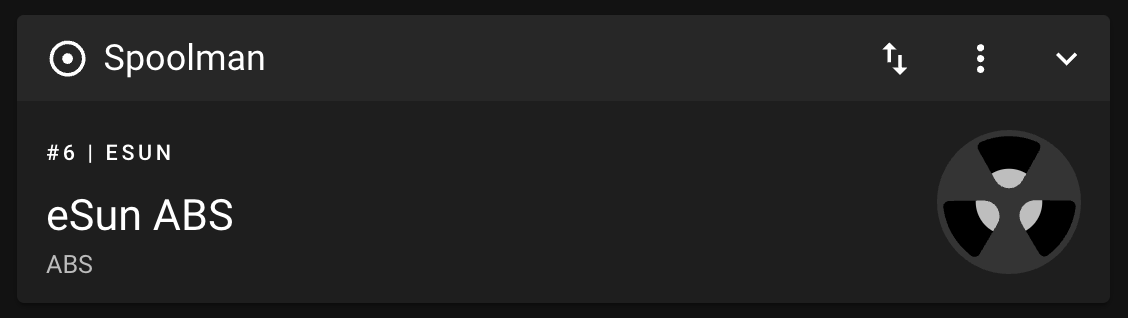

On toolchange, Happy Hare deactivates the previous spool and activates the new one - Mainsail and Fluidd's own Spoolman panel reflects this:

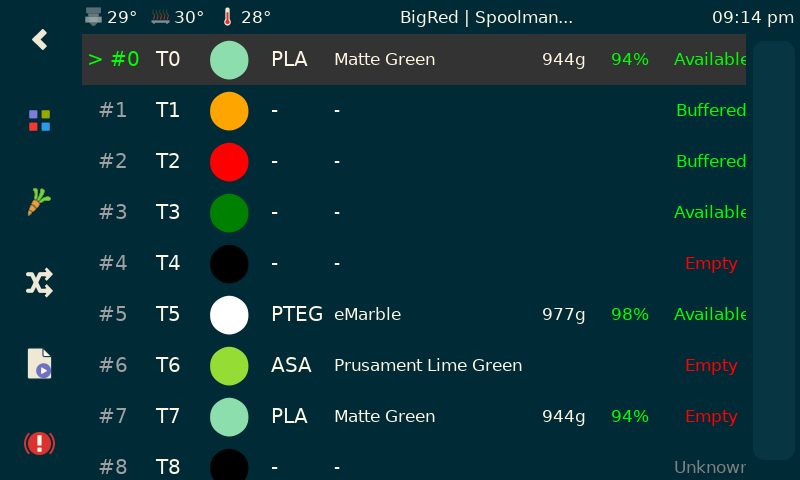

KlipperScreen Happy Hare Edition visualizes the gate map with Spoolman data (material, color, remaining weight) alongside each gate, and lets you edit a gate's SpoolId directly:

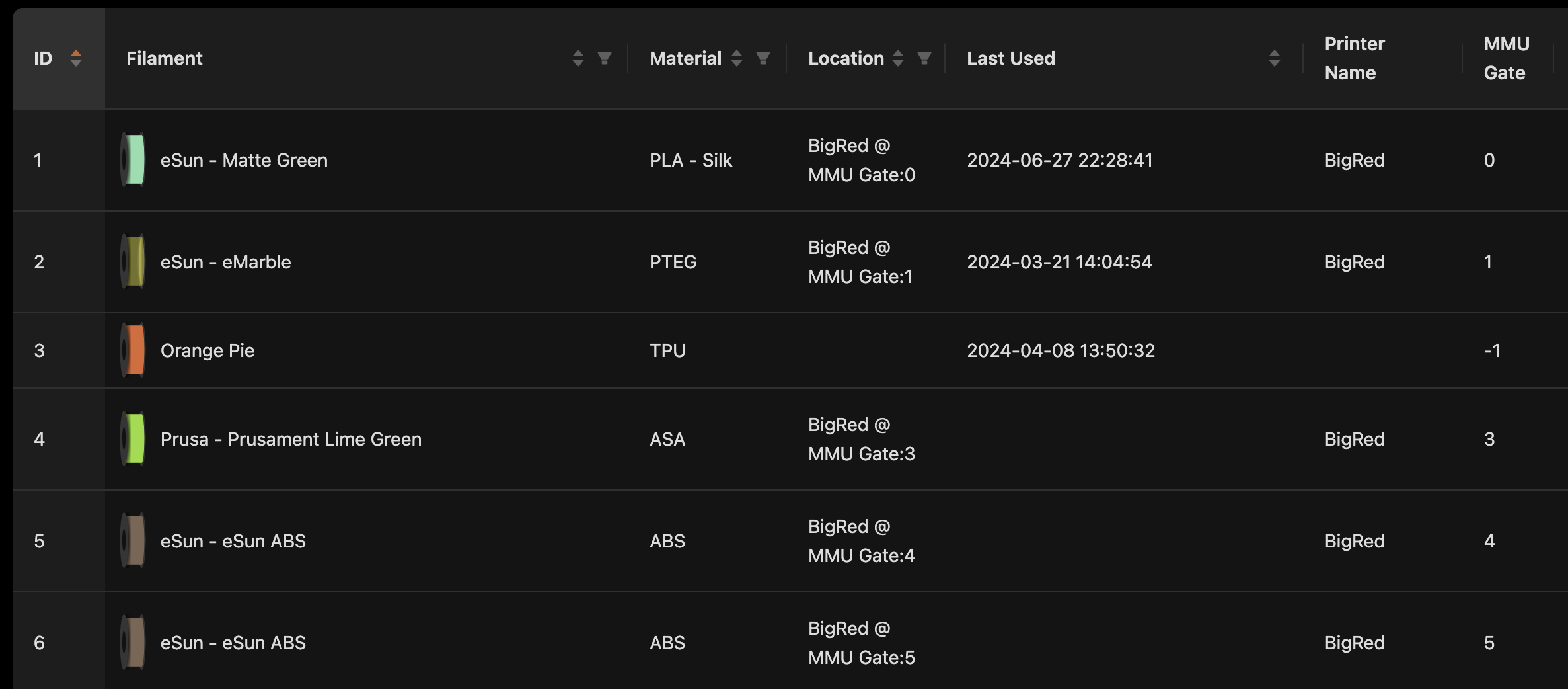

And in Spoolman's own web UI, once the extra columns are shown (see Moonraker Setup above), every spool's row shows which printer and gate it's currently assigned to:

Tuning¶

Setting up each mode¶

Each diagram below shows what actually happens on the wire for that mode - useful mainly for the push/pull cases, where it's not obvious up front which side ends up authoritative for what.

off¶

Nothing to configure beyond the setting itself. Local material/color attributes are used as-is; a SpoolId in the gate map isn't shown or used. Automatic tool-to-gate mapping still works but without Spoolman-sourced attributes to key off.

sequenceDiagram
    autonumber
    participant L as Local gate map
    participant K as Klipper

    K->>L: read gate map at startup
    L-->>K: gate map (no Spoolman involved)

readonly¶

Set a SpoolId per gate with MMU_GATE_MAP GATE=<n> SPOOLID=<id>; Happy Hare fetches and applies that spool's material/color from Spoolman immediately, and again in bulk at every startup. Nothing is ever written back to Spoolman in this mode.

sequenceDiagram
    autonumber
    participant L as Local gate map
    participant K as Klipper
    participant M as Moonraker
    participant S as Spoolman

    K->>L: read gate map at startup
    L-->>K: gate map (with any SpoolIds)
    K->>M: request filament attributes for each SpoolId
    M->>S: look up spool details
    S-->>M: material, color, ...
    M->>K: MMU_GATE_MAP MAP={filament details}
    K->>L: update local attributes

push¶

Same day-to-day commands as readonly, but every assignment is also pushed to Spoolman so it shows up there (see Commands above), and the full gate map is pushed once at startup too. The local mmu_vars.cfg copy stays authoritative throughout.

sequenceDiagram
    autonumber
    participant L as Local gate map
    participant K as Klipper
    participant M as Moonraker
    participant S as Spoolman

    K->>L: read gate map at startup
    L-->>K: gate map
    K->>M: push gate/SpoolId assignments
    M->>S: write printer + gate association
    M->>S: read filament attributes
    S-->>M: material, color, ...
    M->>K: MMU_GATE_MAP MAP={filament details}
    K->>L: update local attributes

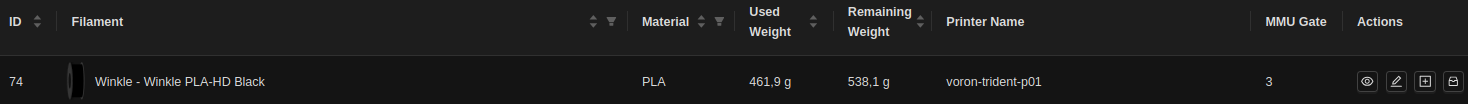

Updating a gate assignment afterwards (MMU_GATE_MAP GATE=3 SPOOLID=74) runs the same round-trip on demand instead of only at startup:

sequenceDiagram
    autonumber
    participant MF as Mainsail/Fluidd
    participant L as Local gate map
    participant K as Klipper
    participant M as Moonraker
    participant S as Spoolman

    MF->>K: MMU_GATE_MAP GATE=3 SPOOLID=74
    K->>L: write local gate map
    K->>M: push the change
    M->>S: write gate/SpoolId association
    M->>S: read filament attributes
    S-->>M: material, color, ...
    M->>K: MMU_GATE_MAP MAP={filament details}
    K->>L: update local attributes

pull¶

Manage assignments with MMU_SPOOLMAN instead of MMU_GATE_MAP (see Commands); Spoolman is authoritative and the local gate map is overwritten to match, both at startup and whenever you push a change. A gate with no SpoolId assigned shows only its bare status (Empty/Unknown) since there's no local attribute data to fall back on.

sequenceDiagram
    autonumber
    participant L as Local gate map
    participant K as Klipper
    participant M as Moonraker
    participant S as Spoolman

    K->>L: read gate map at startup
    L-->>K: (stale) gate map
    K->>M: pull remote gate map + filament attributes
    M->>S: read gate/SpoolId assignments + attributes
    S-->>M: gate map + attributes
    M->>K: MMU_GATE_MAP MAP={remote gate map}
    K->>L: overwrite local gate map

Updating a gate assignment goes through MMU_SPOOLMAN instead of MMU_GATE_MAP, since Spoolman - not the local copy - is what needs to change:

sequenceDiagram
    autonumber
    participant MF as Mainsail/Fluidd
    participant K as Klipper
    participant M as Moonraker
    participant S as Spoolman
    participant L as Local gate map

    MF->>K: MMU_SPOOLMAN GATE=3 SPOOLID=74
    K->>M: update remote gate map
    M->>S: write gate/SpoolId association
    M->>S: read filament attributes
    S-->>M: gate map + attributes
    M->>K: MMU_GATE_MAP MAP={remote gate map}
    K->>L: update local gate map

Working with a remote gate map (pull)¶

Useful when a fleet of printers shares one Spoolman database and gate assignments are managed centrally rather than per-printer. MMU_SPOOLMAN with no parameters lists this printer's own gate assignments; add PRINTER=<name> to check another printer sharing the same database:

MMU_SPOOLMAN PRINTER=BigRed

Spoolman gate assignment for printer: BigRed
Gate | SpoolId
-----+--------
0    | 1
1    | 23
2    |
3    | 41

Changing the local gate map in this mode doesn't stick - the next sync overwrites it from Spoolman. Use MMU_SPOOLMAN GATE=<n> SPOOLID=<id> to change the assignment remotely instead, which then propagates back down.

Re-syncing / recovering¶

Happy Hare re-syncs on its own when it needs to, but if the local and remote gate maps ever look out of step:

MMU_SPOOLMAN SYNC=1              # Re-sync local <-> remote in the direction spoolman_support implies
MMU_SPOOLMAN REFRESH=1           # Rebuild the Moonraker cache first, then sync
MMU_SPOOLMAN REFRESH=1 FIX=1     # ...and clear any gate with more than one spool assigned to it

Avoid running REFRESH=1 against a large Spoolman database mid-print - it's a full cache rebuild, not a quick lookup.

Auto-setting from a QR code (or any external reader)¶

Happy Hare's own NFC/RFID readers resolve a scanned tag automatically, but the same mechanism is available to any external source that can hand Happy Hare a spool ID - a QR code printed by Spoolman and read by a phone/webcam, or a project like nfc2klipper driving its own reader. Whatever the source, the workflow is the same:

1. Look up the spool ID (however your reader/scanner does it).
2. Call MMU_GATE_MAP NEXT_SPOOLID=<id> with it.
3. Insert the filament - either run MMU_PRELOAD to load and park it, or, with entry sensors fitted, just feed it into the back of the gate (this can even be done mid-print).

The gate that ends up loaded gets that SpoolId, with material/color pulled from Spoolman - governed by the same spoolman_pending_id_timeout that bounds a shared NFC/RFID scan.

FilamentHub¶

FilamentHub is a filament and spool manager with a Spoolman-compatible API. It can be used as an alternative backend for Happy Hare's existing Spoolman integration, while Happy Hare continues to use Moonraker's normal [spoolman] component and the same synchronization workflow.

To let FilamentHub manage the remote gate map:

1. On FilamentHub's My Filaments page, select the physical printer and create a Happy Hare material system. When opened inside FilamentHub's OrcaSlicer plugin, the setup can use the Moonraker connection already stored in the selected OrcaSlicer printer profile.
2. Set spoolman_support: pull in mmu.cfg. FilamentHub also recommends t_macro_color: gatemap for the displayed tool colors; see Extruder/Filament Color for what that option changes.

3. Copy the generated block into moonraker.conf:

   [spoolman]
   server: https://filamenthub.ru/api/v1/spool_compat/<device-key>
   sync_rate: 5


   sync_rate: 5 uses Moonraker's default. It isn't a FilamentHub requirement; choose another interval if appropriate for the installation. See Moonraker's [spoolman] configuration for the option's definition.

   Keep the connection URL private

   The generated URL contains a device key. Treat the complete URL like a credential rather than sharing it as an ordinary server address.

4. Restart Moonraker, then use Check printer in the FilamentHub OrcaSlicer plugin. This reads the real gate count, state, and spool assignments through OrcaSlicer's local Moonraker connection without changing either map.

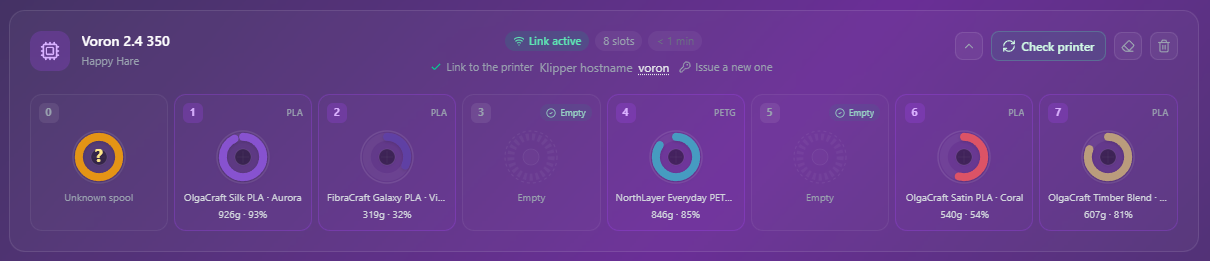

5. Assign spools to gates in FilamentHub. They arrive through the normal Happy Hare sync; use Sync Spoolman in the panel, or the re-sync commands, when an immediate refresh is needed.

Comparing the two gate maps¶

Check printer always starts with a read-only comparison: the actual Happy Hare map is shown separately from the assignments saved in FilamentHub. Nothing changes until a direction is selected and confirmed:

• Use Happy Hare map accepts recognized printer assignments in FilamentHub.
• Restore the link can re-associate an unambiguous spool that FilamentHub previously knew in that same gate when Happy Hare still sees filament but has lost the spool ID.
• Apply to printer sends the saved FilamentHub assignments to Happy Hare. This is available only with spoolman_support: pull and while the printer is idle; the plugin runs the normal refresh and reads the map again to verify it.

Unknown, unavailable, duplicate, or conflicting spools are never replaced automatically. They remain unresolved for the user to review.

Gate state and spool identity also remain independent. A spool_id of -1 means that the spool hasn't been identified - it does not make the gate empty. In the real eight-gate setup below, gate 0 contains buffered filament from an unknown spool, while gates 3 and 5 are the gates Happy Hare reported as empty.

Troubleshooting¶

• "Couldn't connect to Spoolman" - Moonraker's [spoolman] component isn't configured/running, or hasn't finished starting yet. Run MMU_SPOOLMAN REFRESH=1 to force a retry once it's up.
• "Incompatible Spoolman version for this feature" - your Spoolman instance is older than 0.18.1; every spoolman_support mode above off needs at least that version (it's what adds the Printer Name/MMU Gate/RFID fields Happy Hare relies on). Upgrade Spoolman.

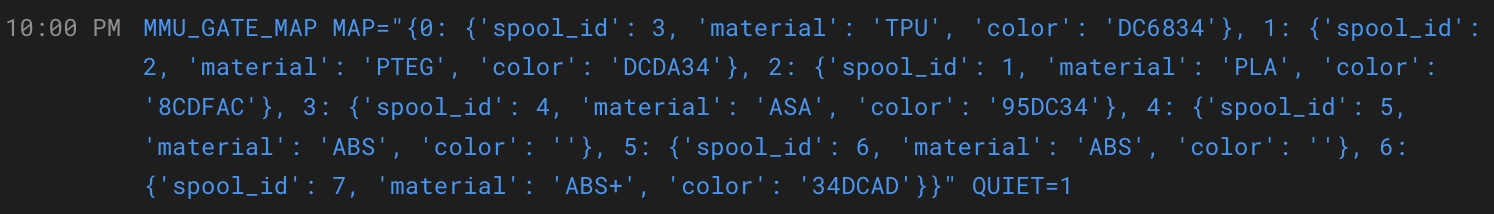

• A boot-time console line like this appears, unprompted:



  This is the normal startup sync writing the fetched gate map back locally - it doesn't always appear, because it can run before the console is attached, but seeing it occasionally just confirms everything is connected. - Gate assignments don't match what you expect in pull mode - remember local edits don't stick; use MMU_SPOOLMAN, not MMU_GATE_MAP, to change anything, or the next sync will overwrite it. - "Cannot use NEXT_SPOOLID feature with spoolman_support: pull" - expected in pull mode; use MMU_SPOOLMAN GATE=<n> SPOOLID=<id> instead (see Working with a remote gate map). - Checking another printer's assignments shows "Error: Can only have a single spool assigned" - the same spool is currently assigned to more than one gate for that printer in Spoolman; run MMU_SPOOLMAN REFRESH=1 FIX=1 to clear all but the first. - "GATE=LAST needs a gate to have been preloaded first" - MMU_SPOOLMAN_TAG GATE=LAST has nothing to resolve to until MMU_PRELOAD has actually run at least once since Klipper started; use an explicit GATE=<n> instead if you're not sure a preload happened. - "Gate N has no NFC/RFID tag UID recorded yet" (on REGISTER=1) - the gate has to have a cached UID from an earlier scan (even an unresolved one) before there's anything to bind - scan the tag first (preload the gate, or MMU_NFC_SCAN if it's already parked), or supply the UID directly with RFID= instead. - "REGISTER=1 is not applicable with spoolman_support=pull" - pull mode already treats Spoolman as authoritative for gate assignment, so use RFID=<uid> directly, or just re-scan the tag once the spool exists in Spoolman.
