Macro: Sequence

What it does

Two distinct things live in this one macro block: toolhead parking (where the toolhead moves during a toolchange, runout, pause, cancel, or completed print) and a set of extension hooks that fire at fixed points around every load and unload. Toolchange Movement already covers parking in full - worked examples, diagrams, the park-position tuples, restore_xy_pos - so this page doesn't repeat that. What it adds is the menuconfig view of the same settings, plus the load/unload hooks that page only mentions in passing.

Where it's applied

Defined in mmu_sequence.cfg. Around every load/unload, five callback macros fire in order - _MMU_PRE_UNLOAD, _MMU_POST_FORM_TIP, _MMU_POST_UNLOAD, _MMU_PRE_LOAD, _MMU_POST_LOAD - each with a matching user_*_extension hook, called after the default handling with the same parameters. A sixth, user_post_preload_extension, fires after a successful gate preload rather than a full load. See Custom Load/Unload Sequences for how these fit around the _MMU_STEP_* state machine itself.

Configuration

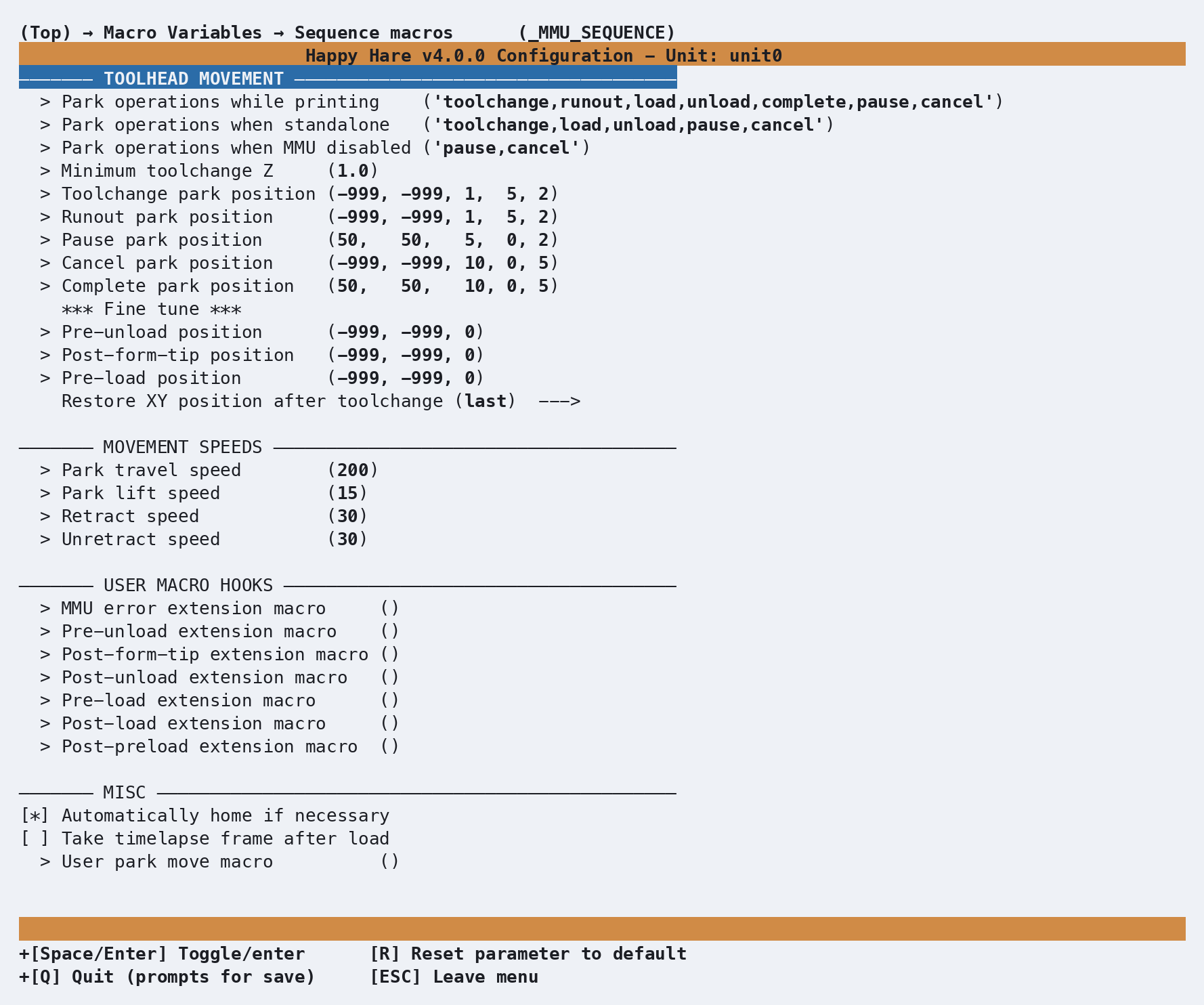

menuconfig: Sequence macros (_MMU_SEQUENCE) screen, showing park position tuples, restore-XY-position choice, movement speeds, and extension hooks

_MMU_SEQUENCE_VARS in mmu_macro_vars.cfg, reachable from menuconfig's Macro Variables → Sequence macros (_MMU_SEQUENCE) screen shown above. Full variable table: Macro Variables: Sequence/parking. For the parking/restore_xy_pos/z-hop settings shown on the same screen, see Toolchange Movement instead - this page focuses on what that one doesn't cover:

  • The six user_*_extension hooks above - see Macro Customization for the extension mechanism they use, and user_park_move_macro, which replaces the default straight-line park move rather than extending it (called with X=/Y=/F=, and again with RESTORE=1 when un-parking).
  • auto_home (on by default) - home XYZ automatically if needed before a parking move, rather than erroring.
  • timelapse (off by default) - take a timelapse frame after every load, if your setup has one configured.
